What Is a Body Control Module (BCM)? Symptoms & Fixes

A body control module (BCM) is the computer that controls your vehicle's body electronics — headlights, interior lights, power windows, door locks, wipers, the horn, and depending on the vehicle, the security system and climate functions. It is not the engine computer. When a BCM fails, the engine usually runs fine while the rest of the car stops behaving: locks cycle on their own, windows ignore the switches, warning lights appear with nothing mechanically wrong.

The short answer on symptoms: a failing body control module shows up as multiple unrelated electrical problems at once. One bad window switch is a switch. Windows, locks, and interior lights all misbehaving in the same month is a module — or the wiring feeding it.

This guide covers what the BCM does, the failure symptoms ranked by how often they appear, how it differs from the ECM and TCM, what testing involves, and what a replacement actually costs once programming is included.

What does a body control module do

The BCM is a junction between your vehicle's switches and the things those switches control. When you press the window button, the signal doesn't run straight to the window motor — it goes to the body control module, which decides what to do with it and sends the command out over the vehicle's CAN-bus network.

That architecture exists for a reason. It lets one module coordinate behaviour across systems: headlights that stay on for 30 seconds after you lock the car, windows that stop responding once the doors are locked from outside, wipers that speed up with vehicle speed. None of that works with direct switch-to-motor wiring. All of it depends on one computer staying healthy.

Where the body control module is located

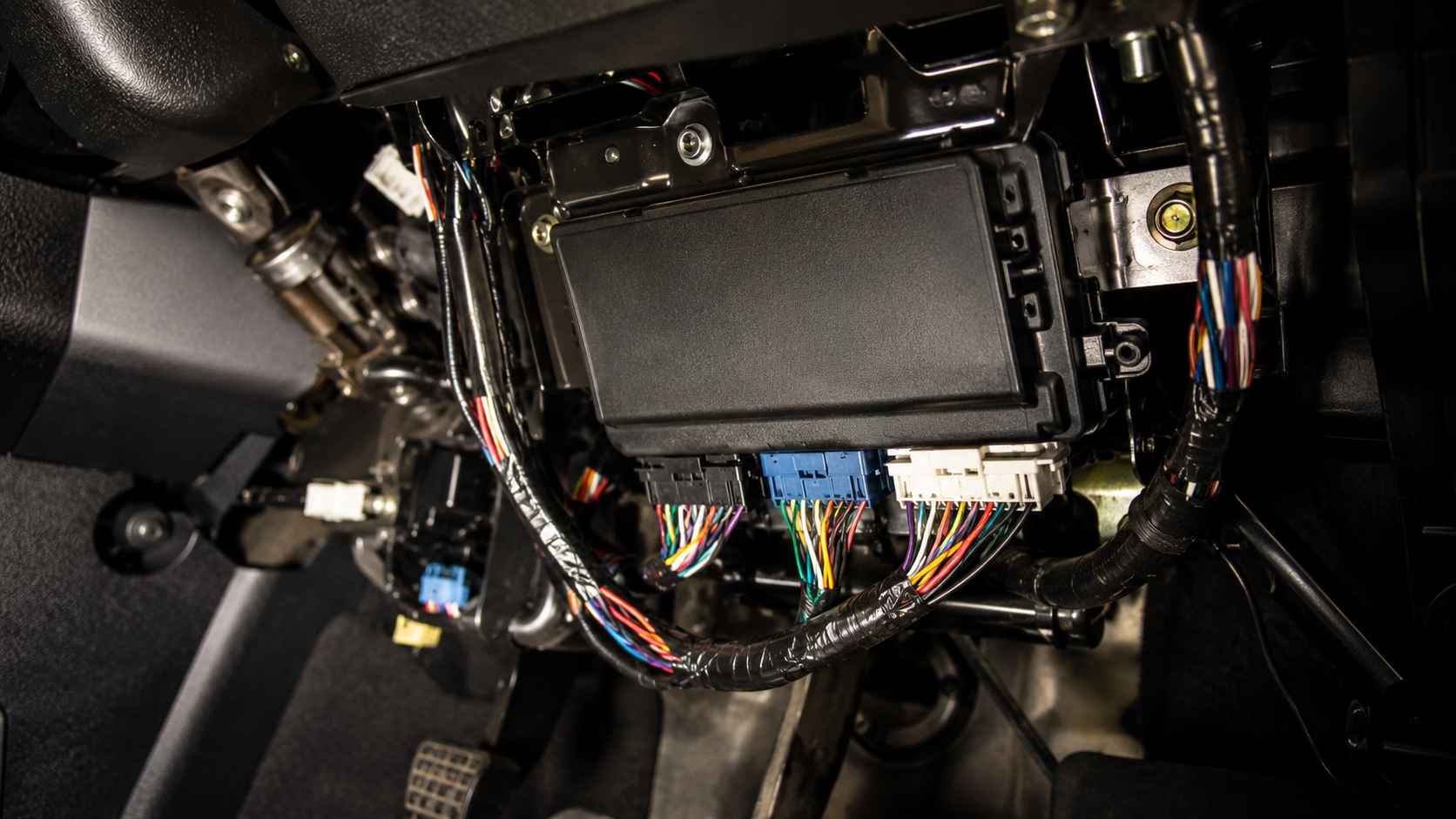

In most vehicles, the BCM sits under the dashboard — commonly behind the kick panel on the driver's side, under the steering column, or behind the glovebox. Some manufacturers put it in the engine-bay fuse box area or behind interior trim in the cabin. The location matters for one practical reason: modules mounted low in the cabin sit in the path of water leaks, which is one of the most common ways they die. Your vehicle's service manual or a model-specific forum will give you the exact spot.

Symptoms of a bad body control module

Body control module failure symptoms rarely arrive alone. The pattern to watch for is several of these appearing together or in quick succession.

Power windows and door locks acting on their own. The most commonly reported symptom. Windows that ignore the switch, locks that cycle while you're driving, or a key fob that works intermittently. Because the BCM processes all of these inputs, one failing module produces faults across all of them.

Dashboard warning lights with no mechanical cause. A failing BCM can light up the airbag, ABS, and security warnings together because it's feeding corrupted data onto the CAN-bus — the other modules see garbage and assume the worst. If a mechanic checks the brakes and airbags and finds nothing wrong, the data source becomes the suspect.

Battery drain overnight. A healthy BCM puts the vehicle's electronics to sleep a few minutes after you lock it. A failing one can hold modules awake all night, drawing current the whole time. If your battery is new, the alternator tests fine, and the car still won't start after sitting for two days, a parasitic drain test pointing at the body control circuits is the next step.

Flickering or stuck lighting. Interior lights that stay on, headlights that flicker at idle, or exterior lights that won't turn off. The BCM drives these circuits directly.

No-start or immediate stall. On many vehicles the BCM participates in the security handshake that authorizes starting. If it can't validate the key, the engine cranks but won't run — or starts and dies within seconds.

Wipers and climate behaving strangely. Wipers that run with the stalk off, or blower settings that change on their own, on vehicles where the BCM handles those circuits.

Owners tend to describe this stage as a haunted car. Service writers record it as an intermittent electrical concern. The BCM is usually the ghost.

One honest caution before you condemn the module: every symptom above can also be caused by a bad ground connection, a chafed harness, or a low battery. Modules are expensive and grounds are free, so test the cheap explanations first.

BCM vs ECM vs TCM: which module does what

Modern vehicles carry dozens of control modules, but three names come up constantly. They are not interchangeable, and replacing the wrong one is an expensive way to learn the difference.

• BCM (body control module) — runs the body electronics: lighting, windows, locks, wipers, security, interior accessories. Failure shows up as convenience and electrical faults.
• ECM (engine control module) — runs the engine: fuel injection, ignition timing, emissions. Failure shows up as rough running, poor fuel economy, or a check engine light with drivability symptoms.
• TCM (transmission control module) — runs the automatic transmission: shift points, torque converter lockup. Failure shows up as harsh or missed shifts and limp mode.

All three talk to each other over the CAN-bus network. That's why a failing BCM can trigger warning lights that look engine-related: the ECM isn't broken, it's reacting to bad data from a neighbour. A scan tool that reads all modules — not just engine codes — is what separates the two cases.

What causes a body control module to fail

BCMs don't usually wear out the way a starter motor does. Most failures trace back to one of four causes.

1. Water intrusion. The most common killer. Blocked sunroof drains, leaking windshield seals, and clogged cowl drains route water onto a module that was never designed to get wet. Corrosion on the circuit board follows, and the faults start intermittent and become permanent.
2. Voltage events. Jump-starting a vehicle backwards, welding on the chassis without disconnecting the battery, a failing alternator overcharging the system — or an aftermarket accessory backfeeding incorrect voltage through the harness. Control modules absorb some abuse, but spikes beyond design limits damage them permanently.
3. Heat and vibration. Years of thermal cycling crack solder joints. This is the classic source of faults that appear on cold mornings — Canadian winters are a genuine factor here — and disappear once the cabin warms up.
4. Connector and harness damage. Sometimes the module is fine and the multi-pin connector feeding it has a corroded or backed-out terminal. Worth ruling out before buying anything.

How to test and reset a body control module

Testing a BCM starts with a scan tool that can read body control codes — B-codes and U-codes, not just the P-codes an entry-level engine code reader shows. A full-system scan tells you two things: what faults the BCM itself has logged, and whether other modules are reporting lost communication with it (U-codes like U0140 point at exactly that).

From there, a competent diagnosis follows a sequence:

1. Charge and load-test the battery. Low system voltage makes modules log nonsense codes. This step alone resolves a surprising share of suspected BCM failures.
2. Scan all modules and record every code before clearing anything.
3. Check power and ground at the module connector with a multimeter, using the wiring diagram for your specific vehicle.
4. Run a parasitic drain test if battery drain is the complaint, pulling fuses to isolate which circuit stays awake.

As for resetting: disconnecting the battery for 15–30 minutes forces every module to reboot, and it occasionally clears a BCM that has locked into a bad state. It is a legitimate first step. It is not a repair — if the fault returns, the underlying cause is still there, and some vehicles need relearn procedures for windows and steering angle sensors afterwards.

If a recall or known defect is a possibility for your model, check Transport Canada's defect and recall database or NHTSA's recall lookup by VIN before paying for anything. BCM-related recalls exist, and the fix is free when they apply.

Body control module replacement: cost, programming, and repair

The figures most shops and parts suppliers quote put a full BCM replacement at $500–$1,500 all-in, and the spread comes from three components:

• The module itself — roughly $150–$700 depending on the vehicle. New OEM units cost the most; remanufactured modules with a warranty run noticeably less.
• Labour — typically one to two hours. The module itself is usually a few connectors and a bracket; the time goes into trim removal and verification.
• Programming — $50–$200. This is the step that surprises people. A new BCM must be programmed to your specific vehicle — VIN, immobilizer keys, option configuration. On many makes that requires dealer-level software, which is why a used module from a salvage yard often can't simply be plugged in.

Repair instead of replacement is a real option in two cases: board-level repair services that fix known failure points on specific module part numbers, and cleaning up corrosion caught early. For water-damaged modules found late, replacement is usually the honest recommendation — corrosion keeps spreading under the conformal coating.

To be clear about where we fit: 4×4 Shop Canada doesn't diagnose or replace body control modules. That work belongs with a dealer or an automotive electrician who has the vehicle-specific programming tools. Where we deal with BCMs every day is the other side of the relationship — making sure the electronics you add to the vehicle never hurt the module that's already there.

How aftermarket electronics and your BCM get along

Everything you plug into a modern vehicle shares a network with the body control module. Done properly, that's a non-event. Done badly, the accessory becomes the reason for the symptoms in this article.

The $30 CAN-bus interface is not a bargain — it's a deferred expense, usually at dealer rates. CAN-bus bridges that don't correctly map the vehicle's data channels send incorrect signals back through the OEM harness. That can corrupt instrument cluster data, trigger the kind of persistent fault codes this article describes, or in the worst cases send voltage to modules that weren't designed to absorb it. The recovery cost starts at several hundred dollars and routinely exceeds the cost of the vehicle's original head unit.

We've watched that math play out. A customer contacted us after buying a generic Android Auto adapter from a marketplace listing. The interface wasn't designed for their vehicle's CAN-bus network and sent incorrect voltage through the OEM harness — their factory navigation screen booted to a white screen and stayed there. The dealer quoted $2,400 for a replacement head unit. The adapter cost $38.

The same logic applies to dash cam installations. A properly hardwired camera uses a fused kit with low-voltage cutoff, so it can never drag the battery down or interfere with the body circuits — our VIOFO A329S hardwiring guide walks through what a correct install looks like. And every interface and INAV screen we carry is built around vehicle-specific CAN-bus integration with an OEM-grade harness, validated for the exact vehicle before we'll sell it. We test every unit before it ships.

If you're adding electronics to a vehicle and want to confirm what's safe for your specific model, email sales@4x4shop.ca with your make, model, year, and trim. Confirming fitment costs nothing. Replacing a control module doesn't.
