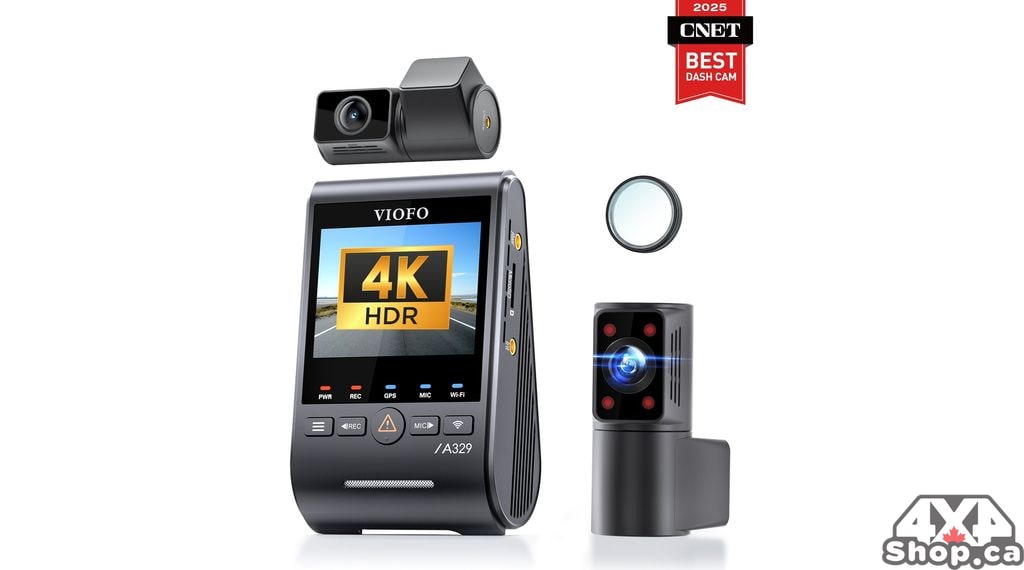

VIOFO A329S 3CH Review: 4K Front + 210° Interior Dash Cam

The VIOFO A329S 3CH records on three simultaneous Sony STARVIS 2 sensors: 4K 30fps front, 2K rear, 2K interior. This VIOFO A329S 3CH review covers what the sensor combination actually produces in footage, where the design makes trade-offs, and what the hardwiring setup requires. If you've already decided it's the right camera, the A329S is available on 4×4 Shop Canada with Canadian tech support available by video call if you have questions about installation or fitment.

One limitation that doesn't appear prominently on the spec sheet: in 3-channel mode, the front camera records at 4K 30fps, not 4K 60fps. The processor distributes workload across all three channels simultaneously, and 30fps is the ceiling when all three are active. The 60fps front setting is only available in 2-channel mode. If maximum front resolution is your only requirement and you have no need for interior coverage, compare the 2-channel A329S before ordering the 3-channel configuration.

For everyone else — rideshare drivers, fleet managers, vehicle owners who want full exterior and interior documentation simultaneously — 30fps on the front is the right trade-off.

Specs at a glance:

• Front: 4K 30fps, Sony STARVIS 2 IMX678, F1.8, 140° FOV
• Rear: 2K 30fps, Sony STARVIS 2 IMX675, F1.8, 160° FOV
• Interior: 2K 30fps, Sony STARVIS 2 IMX675, F1.8, 210° FOV fisheye, 4× IR LEDs
• Storage: microSD up to 512 GB + external SSD up to 4 TB (simultaneously)
• Wi-Fi 6 (2.4 GHz and 5 GHz), GPS built-in, Bluetooth
• Power: supercapacitor (no battery), operates from −20°C to 65°C
• Parking modes: 5
• Price: $469.99 (HK4 hardwire kit and storage sold separately)

The 4K Front Camera: Frame Rates Matter

The front channel uses a Sony STARVIS 2 IMX678 sensor, F1.8 aperture, 140° field of view, recording at 4K (3840×2160) and 30fps in 3-channel operation. The IMX678 is a current-generation low-light sensor — the same sensor family used in premium smartphones and in several dash cameras at higher price points.

Why the frame rate number matters for evidence. A vehicle plate is roughly 30 cm wide. At 80 km/h following distance — approximately 40 metres — that plate subtends about 0.4° of viewing angle. At 4K resolution with a 140° lens, the plate occupies approximately 20 horizontal pixels. At 1080p on the same lens, it occupies about 5 pixels. The 4K advantage is that 20-pixel plate: individual characters resolve clearly at normal playback speed.

The 30fps rate compounds the legibility advantage. Some 4K dash cameras drop to 24fps under processing load to reduce thermal output or file size. At 24fps, each frame has a longer effective exposure than at 30fps, producing more motion blur on fast-moving subjects. A passing vehicle at 100 km/h relative speed produces noticeably more blur at 24fps than at 30fps. For licence plate identification specifically, 30fps produces sharper individual frames.

The 140° field of view trade-off. Several competing front cameras run at 155°–160°. The wider angle captures more peripheral content — pedestrians further to the sides, vehicles entering from wider angles. The A329S's 140° field trades some peripheral coverage for less barrel distortion on straight-ahead subjects. For highway footage and licence plate legibility, the tighter, lower-distortion field is the better option. For urban intersection incidents involving vehicles from wide angles, a wider front camera has an advantage.

HDR mode is available on the front channel. It improves performance in high-contrast situations — bright sky against a dark vehicle ahead, tunnel entry and exit. In 3-channel operation with HDR active, the effective frame rate ceiling on the front channel changes; most users will leave HDR enabled for automatic exposure management and not notice a practical difference in normal driving footage.

Interior Camera Explained: The 210° Fisheye Lens

The interior camera is the reason to choose the 3-channel configuration over a 2-channel setup.

It uses a Sony STARVIS 2 IMX675 sensor — the same sensor as the rear channel — with a 210° fisheye lens and four infrared LEDs that activate automatically in low-light conditions. The 2K resolution (2560×1440) provides enough detail for face identification and incident documentation.

Why 210° is different from the 170° standard. Interior cameras at 170° cover the driver seat, front passenger seat, and most of the rear bench. The side windows sit at the edge of the frame and are partially clipped depending on mounting position. A driver's window may not appear in frame at all.

At 210°, the fisheye wraps far enough to include both side windows. What happens at the driver's door — someone reaching through the window, an aggressive interaction, the moment a door opens from outside — is in frame at 210° and out of frame at 170°. For rideshare drivers, this is the coverage that turns an ambiguous incident into a documented one.

The four infrared LEDs. They activate automatically and illuminate the cabin in infrared light, invisible to occupants but visible to the sensor. In a pitch-dark parking structure or a car sitting unlit overnight in parking mode, the interior camera produces clear footage. Standard interior cameras with one or two LEDs tend to expose the front seats adequately but leave the rear bench underlit. Four LEDs provide more even cabin coverage.

Fisheye distortion. The 210° lens produces visible barrel distortion on objects near the frame edges. For identification — face, incident, physical interaction — the subject is present in frame, and the distortion doesn't affect recognition. For footage that may go to insurers or legal proceedings, some post-production tools offer de-warping filters; MP4 format is compatible with all major video editors.

Recording and disclosure. Canadian provinces generally permit in-vehicle recording in your own vehicle, but some jurisdictions and rideshare platforms have disclosure requirements. The A329S has a visible status indicator on the unit. That satisfies most visible-indicator requirements, but it is not a substitute for confirming the specific rules in your province and your rideshare platform's driver agreement.

Parking Mode: Five Options, One Right Answer

The A329S includes five parking modes. For most users, the choice is made once and not revisited.

• Hybrid Recording: Time-lapse recording combined with triggered event capture. The camera records the parking area at low frame rate until the G-sensor detects an impact, then switches to full-quality recording for the event and a configurable window around it.
• Low Power Impact Detection: Camera stays in standby, waking only on G-sensor trigger. Minimal power draw, no pre-impact footage.
• Auto Event Detection: Continuous monitoring with automatic event tagging. Higher power draw than Hybrid, more storage use.
• Time-lapse Recording: Steady low-frame-rate recording of the surroundings. Useful for overnight vehicle security without G-sensor dependency.
• Low Bitrate Recording: Continuous recording at reduced file size, primarily for storage-constrained situations.

Hybrid Recording is the right default for the majority of parking situations. The time-lapse portion gives you context — the car that slowly scraped your bumper without triggering a sharp G-sensor reading still appears in time-lapse. The triggered recording captures definitive impacts at full quality with pre-event buffer. Storage cost is low because time-lapse files are small.

The supercapacitor and Canadian winters. The A329S uses a supercapacitor for power management, not a lithium battery. Supercapacitors operate across a wider temperature range — the A329S is rated from −20°C to 65°C — without the thermal performance loss that affects lithium cells. A battery-based dash cam left in a Winnipeg parking lot at −25°C may fail to write a complete file during a parking event; some will not start the recording at all until the battery warms to operating temperature. The supercapacitor does not have this failure mode. For Canadian winters, this is a meaningful design choice, not a spec sheet detail.

The same supercapacitor design means there is no onboard energy storage when the engine is off. Parking mode requires the HK4 hardwire kit. A cigarette lighter plug provides no power when the ignition is off and will not support any parking mode. This is mandatory, not optional, and the kit is sold separately.

SSD Support: What 4TB Storage Actually Changes

External SSD support up to 4 TB via USB-C is a significant addition for fleet and rideshare use. For personal daily driving, it changes the calculation less than the marketing suggests — but it's worth understanding.

In 3-channel recording at the default bitrate, the A329S writes roughly 4–6 GB per hour. A 128 GB microSD card holds approximately 20–30 hours of footage before loop recording begins overwriting older files. A 4 TB SSD holds 600+ hours — roughly 25 continuous days.

For a rideshare driver doing 8 hours of trips per day, a 128 GB card covers about 2.5 days before footage cycles. If a passenger files a complaint 10 days later, that footage is gone. A 4 TB SSD retains it. For fleet managers tracking incidents across insurance audit periods or billing cycles, extended retention changes what evidence is recoverable when a dispute surfaces weeks after the fact.

For personal daily commuting, 4 TB is aspirational. A high-endurance 256 GB or 512 GB microSD card is the practical choice. The specification to look for is the endurance rating — terabytes written (TBW) — not the storage capacity number. Samsung PRO Endurance, Sandisk High Endurance, and Kingston Canvas Go Plus are examples in this category. Standard consumer cards are not rated for continuous loop recording and fail earlier under constant write conditions.

Neither the microSD card nor the external SSD is included with the A329S. Factor both into the total system cost when comparing across products.

Hardwiring Setup: Don't Cut Corners

Professional installation is the right default for the A329S. Not because the camera is complicated — the electrical connections are three wires — but because the vehicle is.

Most passenger vehicles built since 2015 have 40 or more software modules communicating over their CAN-bus network. A technician accessing the fuse box at the wrong point in the ignition cycle, or pulling interior trim panels out of sequence, can generate fault codes that require a dealer to clear. The hardwire connections themselves are straightforward. The vehicle's reaction to incorrect disassembly sequencing is not. An experienced installer who has done your specific make and model before knows where the hidden clips are, which panels come off in which order, and which fuse circuits to avoid. That knowledge is worth the installation cost.

The three connections required by the HK4 hardwire kit:

1. Constant power (BATT): A fuse circuit that remains powered when the ignition is off — power seat, horn, or interior lighting circuits are common choices. Tap through the fuse box using the included add-a-fuse adaptor; do not connect directly to the battery terminal.
2. Accessory power (ACC): A circuit that activates with the ignition — radio, power window, wiper, or heated seat circuits. This tells the camera when the engine is running and when to transition out of parking mode.
3. Ground: A direct bolt to bare metal chassis. Not a painted surface, not a bracket with corrosion between it and the frame. A poor ground is the most common cause of electrical noise in dashcam footage and the most common installation error.

Set the voltage cutoff to 12.2V. The camera will shut down before the battery drops below reliable starting voltage. 12.4V is the conservative setting — it cuts off sooner, better battery protection, shorter parking mode window per charge. Either is correct depending on your battery condition and how long the vehicle sits.

A fleet manager in Alberta called our tech support line expecting a phone queue. He got one of our engineers in Markham on the second ring. The call ran 22 minutes and resolved a hardwire sequencing issue he had been troubleshooting through forum posts for three days. He now orders for 18 company vehicles.

Video call tech support is available at +1 289-378-5877. You show us the installation, we diagnose. Most hardwire issues are a single misconfigured fuse or a noisy ground, and they resolve in one call.
